OpenShift 4.3 installation on VMware vSphere with static IPs

Tags:

• Openshift
• Redhat
• K8s
• Kubernetes
• Terraform
• Vmware
• Vsphere
• Ocp

Categories:

• Container
• Platform
• Openshift

In this article, I will show you how to install Red Hat OpenShift Container Platform 4.3 (OCP) on VMware vSphere with static IPs addresses using the openshift installer in UPI mode and terraform. In contrast to the official OpenShift 4.3 install documentation, we will not use DHCP for the nodes and will not setup the nodes manually - instead we will use static IP addresses and terraform to setup the virtual machines in our vCenter.

• TOC {:toc}

Since this article will not describe basic requirements like the minimum VMware vSphere version, a good start would be to consult the official OpenShift documentation: https://docs.openshift.com/container-platform/4.3/installing/installing_vsphere/installing-vsphere.html{:target="_blank"}

Infrastructure / Nodes

Let’s take a look at the hosts we will be faced with in this setup.

External nodes (non OpenShift cluster machines)

• bastion / install host: the bastion host will be the host, where we execute our openshift-installer and terraform commands. This node can be your workstation or a temporary Linux VM. After a successful installation, this node can be removed - please ensure to save your installation configuration (ssh-key, ignition files, etc.) into an external location (fileshare, git-repo, …).

• http host: the http host will provide the ignition file for out bootstrap node via http. Of course you can setup an http server on the bastion / install host. After bootstrapping OpenShift, this host can be removed as well.

• external loadbalancer (lb): this node is optional. If you have some kind of real hardware loadbalancer like F5 BigIP, use this one. For this test installation we will setup a very basic HA-Proxy on a Linux VM.

VMware vSphere nodes (OpenShift nodes)

The following nodes will be provisioned on your VMware vSphere environment:

• bootstrap node: the bootstrap node will be provisioned by our installer and will be responsible for setting up the OpenShift 4 cluster - fully automated. After the installation, the bootstrap node can be removed.
• control pane nodes (OpenShift master nodes):
  • control-plane-0
  • control-plane-1
  • control-plane-2
• worker nodes (OpenShift compute nodes):
  • compute-0
  • compute-1

Architecture

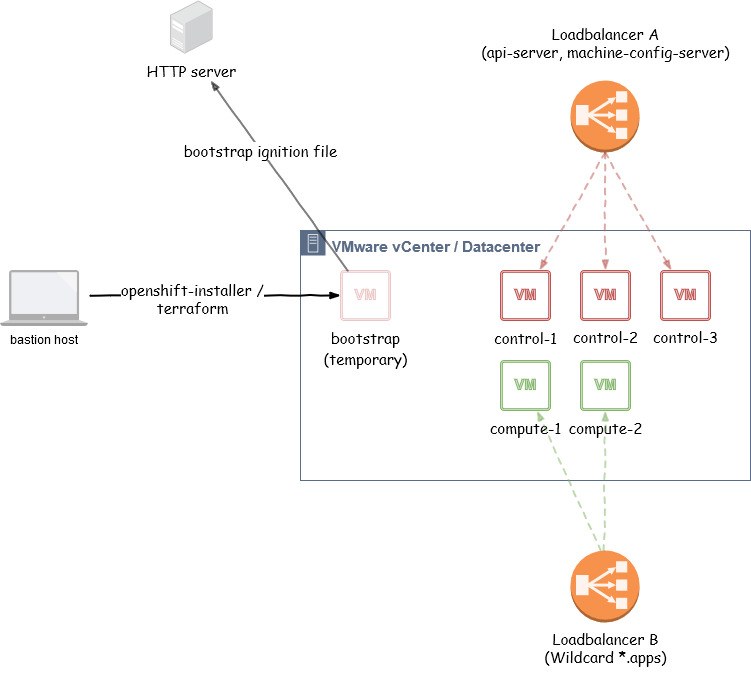

This picture shows our landscape while installation:

(Loadbalancer A and Loadbalancer B can reside on the same hard-/software dispatcher)

Prerequisites

Let’s talk about some very important prerequisites for a smooth installation. The most important point will be the DNS configuration.

OCP cluster id

First of all, lets define an OCP cluster id. This id (string) will be relevant for the DNS configuration. Keep in mind that OpenShift 4 has a concept of a “clusterid” that will be incorporated into your clusters DNS records. Your DNS records will all have <clusterid>.<basedomain> in them. In other words, your “cluster id” will end up being part of your FQDN. Read the official documentation for more information.

We’ll use ocp4-cluster-001 as a cluster id.

So later on, a node’s fqdn will be composed of a node name, the cluster id an the base domain: <node>.<clusterid>.<basedomain>

Sample host name (FQDN): compute-0.ocp4-cluster-001.int.consol.de

Base domain

The base domain is the subdomain, where your nodes will be placed in. The name depends on your infrastructure. Our base domain: int.consol.de

DNS configuration

Proper DNS setup is imperative for a successful OpenShift installation. DNS is used for name resolution (A records), certificate generation (PTR records), and service discovery (SRV records).

Our DNS configuration: {% highlight bash %}

BOOTSTRAP NODE

bootstrap.ocp4-cluster-001.int.consol.de has address 10.0.5.58

MASTER / CONTROL PLANE NODES

control-plane-0.ocp4-cluster-001.int.consol.de has address 10.0.5.59 control-plane-1.ocp4-cluster-001.int.consol.de has address 10.0.5.60 control-plane-2.ocp4-cluster-001.int.consol.de has address 10.0.5.61

WORKER NODES

compute-0.ocp4-cluster-001.int.consol.de has address 10.0.5.62 compute-1.ocp4-cluster-001.int.consol.de has address 10.0.5.63

LOADBALANCER

lb.ocp4-cluster-001.int.consol.de has address 10.0.5.64 {% endhighlight %}

Terraform

For the fully automated VM provisioning, we’ll use an infrastructure-as-code tool called terraform{:target="_blank"}. Take care of the version - currently only version 11.x of terraform is working with the installer github template. Version 12.x will most likely fail (at the time of writing).

Link: https://www.terraform.io/downloads.html{:target="_blank"}

Quick setup: {% highlight bash %} $ mkdir ~/bin $ cd /tmp/ $ export TERRAFORM_VERSION=0.11.14 $ curl -O -L https://releases.hashicorp.com/terraform/${TERRAFORM_VERSION}/terraform_${TERRAFORM_VERSION}_linux_amd64.zip $ unzip terraform_${TERRAFORM_VERSION}_linux_amd64.zip -d ~/bin/ $ terraform -v Terraform v0.11.14 {% endhighlight %}

govc

govc is a VMware/vSphere CLI. For faster deployment of an OVA Image, we will use govc. Alternatively you can deploy the template manually via vSphere web console.

Link: https://github.com/vmware/govmomi/tree/master/govc{:target="_blank"}

Quick setup: {% highlight bash %} $ mkdir ~/bin $ export GOVC_URL=https://github.com/vmware/govmomi/releases/download/v0.22.1/govc_linux_amd64.gz $ curl -L ${GOVC_URL} | gunzip > ~/bin/govc $ chmod +x ~/bin/govc $ govc version govc 0.22.1 {% endhighlight %}

SSH keys

Since our CoreOS based VMs will be configured automatically, we have to provide a ssh public key to be able to log on to the nodes via ssh as user core.

Generate a ssh private key:

{% highlight bash %} $ ssh-keygen -f ~/.ssh/id_rsa_ocp4_vcenter {% endhighlight %}

Use the generated ssh public key ~/.ssh/id_rsa_ocp4_vcenter.pub for the installation.

LB / HAProxy Setup

As loadbalancer for our POC setup, we will use a HAProxy on a CentOS VM. Don’t do this in production environments!

Our loadbalancer will listen on network address lb.ocp4-cluster-001.int.consol.de:<ports>.

Install HAProxy

{% highlight bash %} $ yum install haproxy -y {% endhighlight %}

Basic HAProxy setup

This configuration will add the following load balancer entries to HA-Proxy:

• openshift-api-server (port 6443)
• machine-config-server (port 22623)
• ingress-http (port 80)
• ingress-https (port 443)

Add the following configuration lines to /etc/haproxy/haproxy.cfg: (replace the IP addresses!) {% highlight bash %} frontend openshift-api-server bind *:6443 default_backend openshift-api-server mode tcp option tcplog

backend openshift-api-server balance source mode tcp server bootstrap 10.0.5.58:6443 check server control-plane-0 10.0.5.59:6443 check server control-plane-1 10.0.5.60:6443 check server control-plane-2 10.0.5.61:6443 check

frontend machine-config-server bind *:22623 default_backend machine-config-server mode tcp option tcplog

backend machine-config-server balance source mode tcp server bootstrap 10.0.5.58:22623 check server control-plane-0 10.0.5.59:22623 check server control-plane-1 10.0.5.60:22623 check server control-plane-2 10.0.5.61:22623 check

frontend ingress-http bind *:80 default_backend ingress-http mode tcp option tcplog

backend ingress-http balance source mode tcp server compute-0 10.0.5.62:80 check server compute-1 10.0.5.63:80 check

frontend ingress-https bind *:443 default_backend ingress-https mode tcp option tcplog

backend ingress-https balance source mode tcp server compute-0 10.0.5.62:443 check server compute-1 10.0.5.63:443 check {% endhighlight %}

Please ensure, that no services are listening on port 80 or 443 on your HAproxy machine (e.g. lsof -i:80 or ss -lnt sport = :80)

Restart HA-Proxy: systemctl restart haproxy (optional) Enable haproxy service for permanent use: systemctl enable haproxy

HTTP Server for serving ignition files

For serving the ignition file of the bootstrap node, we will setup a simple HTTP server on port 8080 on our loadbalancer host (lb.ocp4-cluster-001.int.consol.de).

{% highlight bash %} $ yum install httpd -y {% endhighlight %}

In /etc/httpd/conf/httpd.conf, change the listen port from Listen 80 to Listen 8080. Restart httpd: systemctl restart httpd

OCP pull secret

For installing Red Hat OpenShift Container Platform 4.3, you’ll need a pull secret: Link: https://cloud.redhat.com/openshift/install/vsphere/user-provisioned{:target="_blank"}

OCP openshift-installer

From https://mirror.openshift.com/pub/openshift-v4/clients/ocp/latest/{:target="_blank"}, fetch the appropriate openshift-installer version and extract the binary to ~/bin/, e.g. openshift-install-linux-4.3.0.tar.gz.

oc client

From https://mirror.openshift.com/pub/openshift-v4/clients/ocp/latest/{:target="_blank"}, fetch the appropriate oc version and extract the binary to ~/bin/, e.g. openshift-client-linux-4.3.0.tar.gz.

VMware vSphere / vCenter

For a fully automated provisioning of your VMs on VMware vSphere, you’ll need an vCenter account with the appropriate permissions and information:

• vCenter URL
• vCenter login
• vCenter password
• datacenter name
• cluster name
• datastore name

A ressource group will be generated automatically and named like your OCP cluster id.

OVA image

The base image for all our CoreOS VMs will be a Red Hat CoreOS Image 4.3. This image can be found here: https://mirror.openshift.com/pub/openshift-v4/dependencies/rhcos/4.3/4.3.0/rhcos-4.3.0-x86_64-vmware.ova{:target="_blank"}

Installation

OVA image upload

The first step of the installation is to upload the OVA image to our vCenter datacenter and mark it as a template. All CoreOS VMs will be cloned from this template.

Ensure you have the correct image downloaded: {% highlight bash %} $ ls -la rhcos-4.3.0-x86_64-vmware.ova -rw-rw-r– 1 zisis zisis 829542400 Jan 27 12:59 rhcos-4.3.0-x86_64-vmware.ova {% endhighlight %}

Set govc environment variables if you want to upload the image via govc. Alternatively you can upload the image via vCenter web console. {% highlight bash %} export GOVC_URL=‘ocp-vcenter.int.consol.de’ export GOVC_USERNAME='administrator@vsphere.local' export GOVC_PASSWORD=‘mypassword’ export GOVC_INSECURE=1 export GOVC_DATASTORE=‘vsanDatastore’ {% endhighlight %}

Check if your login works: {% highlight bash %} $ govc about Name: VMware vCenter Server Vendor: VMware, Inc. Version: 6.7.0 … {% endhighlight %}

Upload OVA image and mark as template. The name (rhcos-4.3.0) is important for later use, since we will reference the name of the template in our terraform plan (terraform.tfvars).

Pull spec: {% highlight bash %} $ govc import.spec /home/zisis/rhcos-4.3.0-x86_64-vmware.ova | python -m json.tool > rhcos.json {% endhighlight %}

Customize the Network you want to use in rhcos.json: {% highlight bash %} “NetworkMapping”: [ { “Name”: “VM Network”, “Network”: “VM Network” } {% endhighlight %}

List resource pools: {% highlight bash %} $ govc find / -type p /Datacenter/host/cluster001/Resources /Datacenter/host/openshift-test-esx-3.int.consol.de/Resources {% endhighlight %}

Upload the rhcos-4.3.0 image to the resource pool: {% highlight bash %} $ govc import.ova -options=./rhcos.json -name=rhcos-4.3.0
-pool=/Datacenter/host/cluster001/Resources /home/zisis/rhcos-4.3.0-x86_64-vmware.ova [27-01-20 17:27:21] Uploading disk.vmdk… OK {% endhighlight %}

Mark the VM as a template: {% highlight bash %} $ govc vm.markastemplate vm/rhcos-4.3.0 {% endhighlight %}

Ignition files (openshift-installer)

The following steps will:

• create an installation directory
• create an install-config.yaml
• create a backup of install-config.yaml, since the install-config.yaml will be deleted automatically
• create the ignition files with openshift-installer

For the install-config.yaml, you need the following input:

• base domain
• OCP cluster id
• OCP pull secret
• ssh public key (~/.ssh/id_rsa_ocp4_vcenter.pub)
• vCenter host
• vCenter user
• vCenter password
• vCenter datacenter
• vCenter datastore

Commands: {% highlight bash %} $ mkdir ocpinstall $ cd ocpinstall

create an install-config.yaml

$ cat «EOF > install-config.yaml apiVersion: v1 baseDomain: int.consol.de metadata: name: ocp4-cluster-001 platform: vSphere: vcenter: ocp-vcenter.int.consol.de username: administrator@vsphere.local password: mypassword datacenter: Datacenter defaultDatastore: vsanDatastore pullSecret: ‘{“auths”:{“cloud.openshift.com”:{“auth”:"…….."}}}’ sshKey: ssh-rsa AAAAB3N….. EOF

make a backup

$ cp install-config.yaml install-config.date '+%s'.bak

create ignition configs

$ openshift-install create ignition-configs INFO Consuming “Install Config” from target directory {% endhighlight %}

Now you should have a directory structure like this: {% highlight bash %} $ tree . ├── auth │   ├── kubeadmin-password │   └── kubeconfig ├── bootstrap.ign ├── install-config.1579194442.bak ├── master.ign ├── metadata.json └── worker.ign {% endhighlight %}

Caveat: ignition files are valid for 24 hours - so if your installation takes longer than 24 hours due to issues, you have to generate new ignition files.

Copy ignition files to your HTTP server

Copy the generated bootstrap.ign file to your HTTP server and ensure, that the file can be downloaded with http:

Copy: {% highlight bash %} $ scp bootstrap.ign http-user@lb.ocp4-cluster-001.int.consol.de:/var/www/html/ {% endhighlight %}

Check, if download would succeed from your http server: {% highlight bash %} $ curl -I http://lb.int.consol.de:8080/bootstrap.ign HTTP/1.1 200 OK … {% endhighlight %}

Prepare the terraform installer

For the installation, we will use a modified version of the UPI vSphere installer, which is available at: https://github.com/openshift/installer/tree/master/upi/vsphere{:target="_blank"}

Clone the repo and change to the upi vSphere directory: {% highlight bash %} $ git clone https://github.com/openshift/installer.git $ cd installer/upi/vsphere {% endhighlight %}

Copy the example file to terraform.tfvars an adjust the variables.

In sections control_plane_ignition / END_OF_MASTER_IGNITION and compute_ignition / END_OF_WORKER_IGNITION, insert / copy&paste the contents of the ignitions files (master and worker) we generated before:

• END_OF_MASTER_IGNITION -> master.ign
• END_OF_WORKER_IGNITION -> worker.ign

Our terraform.tfvars: {% highlight bash %} cluster_id = “ocp4-cluster-001” cluster_domain = “ocp4-cluster-001.int.consol.de” base_domain = “int.consol.de” vsphere_server = “ocp-vcenter.int.consol.de” vsphere_user = “administrator@vsphere.local” vsphere_password = “mypassword” vsphere_cluster = “cluster001” vsphere_datacenter = “Datacenter” vsphere_datastore = “vsanDatastore” vm_template = “rhcos-4.3.0” machine_cidr = “10.0.5.0/24”

vm_network = “VM Network”

control_plane_count = 3 compute_count = 2

bootstrap_ignition_url = “http://lb.int.consol.de:8080/bootstrap.ign"

control_plane_ignition = «END_OF_MASTER_IGNITION {“ignition”:{“config”:{“append”:[{“source”:“https://api-int.ocp4-cluster-001.int.consol.de:22623/config/master”,“verification”:{}…. END_OF_MASTER_IGNITION

compute_ignition = «END_OF_WORKER_IGNITION {“ignition”:{“config”:{“append”:[{“source”:“https://api-int.ocp4-cluster-001.int.consol.de:22623/config/worker”,“verification”:{}} …. END_OF_WORKER_IGNITION

put your static IPs in here

bootstrap_ip = “10.0.5.58” control_plane_ips = [“10.0.5.59”, “10.0.5.60”, “10.0.5.61”] compute_ips = [“10.0.5.62”, “10.0.5.63”] {% endhighlight %}

Modify the file main.tf and delete or comment out the module "dns" part, since we do not want to use Route53/AWS as DNS provider: {% highlight bash %} // module “dns” { // source = “./route53” // // base_domain = “${var.base_domain}” // cluster_domain = “${var.cluster_domain}” // bootstrap_count = “${var.bootstrap_complete ? 0 : 1}” // bootstrap_ips = ["${module.bootstrap.ip_addresses}”] // control_plane_count = “${var.control_plane_count}” // control_plane_ips = ["${module.control_plane.ip_addresses}"] // compute_count = “${var.compute_count}” // compute_ips = ["${module.compute.ip_addresses}"] // } {% endhighlight %}

Next steps will be to configure DNS and network gateway, if needed:

machine/ignition.tf: {% highlight bash %} … DNS1=10.0.0.8 … {% endhighlight %}

OpenShift installation

After all prerequisites are done, let’s install OpenShift…

Change into the vsphere installer directory, where you modified the terraform files (*.tf): {% highlight bash %}

$ cd installer/upi/vsphere {% endhighlight %}

Init, plan and apply our terraform plan, which will set up our VMs and start the OpenShift installation: {% highlight bash %} $ terraform init … $ terraform plan … $ terraform apply -auto-approve … module.compute.vsphere_virtual_machine.vm[1]: Creation complete after 4m45s (ID: 4217b49d-a6f9-b259-1dde-ba3bb32034e8) module.control_plane.vsphere_virtual_machine.vm[2]: Creation complete after 4m45s (ID: 4217718d-32af-d4a3-86d2-96ed35bbe309) Apply complete! Resources: 8 added, 0 changed, 0 destroyed. {% endhighlight %}

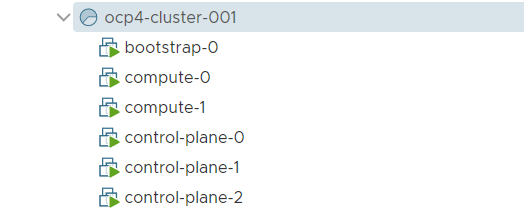

Now you should see popping up some VMs in your vCenter:

In this phase, the bootstrap node is set up, which in turn will setup the cluster: {% highlight bash %} $ cd ~/ocpinstall/ $ openshift-install –dir=. wait-for bootstrap-complete –log-level debug DEBUG OpenShift Installer v4.3.0 DEBUG Built from commit 2055609f95b19322ee6cfdd0bea73399297c4a3e INFO Waiting up to 30m0s for the Kubernetes API at https://api.ocp4-cluster-001.int.consol.de:6443… DEBUG Still waiting for the Kubernetes API: the server could not find the requested resource … DEBUG Still waiting for the Kubernetes API: the server could not find the requested resource DEBUG Still waiting for the Kubernetes API: Get https://api.ocp4-cluster-001.int.consol.de:6443/version?timeout=32s: EOF INFO API v1.16.2 up INFO Waiting up to 30m0s for bootstrapping to complete…

DEBUG Bootstrap status: complete INFO It is now safe to remove the bootstrap resources … {% endhighlight %}

If you want to see more details about installers progress, you can start a tail -f on ~/ocpinstall/.openshift_install.log.

Since the bootstrap node has given control over to the forming cluster, we can remove the bootstrap node: {% highlight bash %} $ cd installer/upi/vsphere $ terraform apply -auto-approve -var ‘bootstrap_complete=true’ {% endhighlight %}

After the bootstrap node was removed, you can adjust your loadbalancer and remove the bootstrap node from your dispatcher configuration.

The OCP4 cluster will continue to finish its installation by using a lot of cool operators: {% highlight bash %} $ cd ~/ocpinstall/ $ openshift-install –dir=. wait-for install-complete INFO Waiting up to 30m0s for the cluster at https://api.ocp4-cluster-001.int.consol.de:6443 to initialize…

INFO Waiting up to 10m0s for the openshift-console route to be created… INFO Install complete! INFO To access the cluster as the system:admin user when using ‘oc’, run ’export KUBECONFIG=/home/zisis/ocpinstall/auth/kubeconfig’ INFO Access the OpenShift web-console here: https://console-openshift-console.apps.ocp4-cluster-001.int.consol.de INFO Login to the console with user: kubeadmin, password: AHTUN-2vGkj-Fo0Ba-Ctae9 {% endhighlight %}

A new star is born.

Kubeconfig for oc commands

For being able to execute oc commands, you have to use the kubeconfig, which was generated by the installer. You either use this kubeconfig by exporting the environment variable KUBECONFIG or copy the file auth/kubeconfig to your home directory in .kube/config (be sure not to overwrite any other kubeconfig): {% highlight bash %} $ export KUBECONFIG=~/ocpinstall/auth/kubeconfig {% endhighlight %} or {% highlight bash %} $ cp ~/ocpinstall/auth/kubeconfig ~/.kube/config {% endhighlight %}

Wait for clusteroperators

Wait for cluster operators to get ready: {% highlight bash %} $ oc get clusteroperators NAME VERSION AVAILABLE PROGRESSING DEGRADED SINCE authentication 4.3.0 True False False 26h cloud-credential 4.3.0 True False False 27h cluster-autoscaler 4.3.0 True False False 26h console 4.3.0 True False False 26h dns 4.3.0 True False False 26h image-registry 4.3.0 True False False 26h ingress 4.3.0 True False False 26h insights 4.3.0 True False False 26h kube-apiserver 4.3.0 True False False 26h kube-controller-manager 4.3.0 True False False 26h kube-scheduler 4.3.0 True False False 26h machine-api 4.3.0 True False False 26h machine-config 4.3.0 True False False 26h marketplace 4.3.0 True False False 26h monitoring 4.3.0 True False False 26h network 4.3.0 True False False 26h node-tuning 4.3.0 True False False 26h openshift-apiserver 4.3.0 True False False 26h openshift-controller-manager 4.3.0 True False False 26h openshift-samples 4.3.0 True False False 26h operator-lifecycle-manager 4.3.0 True False False 26h operator-lifecycle-manager-catalog 4.3.0 True False False 26h service-ca 4.3.0 True False False 26h service-catalog-apiserver 4.3.0 True False False 26h service-catalog-controller-manager 4.3.0 True False False 26h storage 4.3.0 True False False 26h {% endhighlight %}

Check your nodes: {% highlight bash %} $ oc get nodes NAME STATUS ROLES AGE VERSION compute-0 Ready worker 8m2s v1.14.6+cebabbf4a compute-1 Ready worker 7m54s v1.14.6+cebabbf4a control-plane-0 Ready master 10m13s v1.14.6+cebabbf4a control-plane-1 Ready master 11m26s v1.14.6+cebabbf4a control-plane-2 Ready master 10m54s v1.14.6+cebabbf4a {% endhighlight %}

Setup image registry (postinstall)

In order to complete the installation, you need to add storage to the image registry. For test setups, you can set this to emptyDir (for more permanent storage, please see the official documentation for more information). So after a successful installation, only the image registry operator should be running in the openshift-image-registry namespace: {% highlight bash %} $ oc get pods -n openshift-image-registry NAME READY STATUS RESTARTS AGE cluster-image-registry-operator-f9697f69d-n47j8 2/2 Running 0 62s {% endhighlight %}

Patch the image registry operator to use an emptyDir as storage: {% highlight bash %} $ oc patch configs.imageregistry.operator.openshift.io cluster –type merge –patch ‘{“spec”:{“storage”:{“emptyDir”:{}}}}’ config.imageregistry.operator.openshift.io/cluster patched {% endhighlight %}

(for OCP 4.3) When there is no Object Storage available at initial setup of the registry, you will have to set manually the managementState for OpenShift bringing up the image registry successfully, see https://docs.openshift.com/container-platform/4.3/registry/configuring-registry-storage/configuring-registry-storage-vsphere.html#registry-removed_configuring-registry-storage-vsphere{:target="_blank"}: {% highlight bash %} $ oc patch configs.imageregistry.operator.openshift.io cluster –type merge –patch ‘{“spec”:{“managementState”: “Managed”}}’ config.imageregistry.operator.openshift.io/cluster patched {% endhighlight %}

Now you should see the registry coming up: {% highlight bash %} $ oc get pods -n openshift-image-registry NAME READY STATUS RESTARTS AGE cluster-image-registry-operator-f9697f69d-n47j8 2/2 Running 0 3m54s image-registry-7766c98447-pgdwp 0/1 ContainerCreating 0 65s image-registry-9fd47f8fb-gs5kc 0/1 ContainerCreating 0 65s node-ca-2g5j9 0/1 ContainerCreating 0 66s node-ca-2l85v 0/1 ContainerCreating 0 66s node-ca-798mx 0/1 ContainerCreating 0 66s node-ca-nmrhw 0/1 ContainerCreating 0 66s node-ca-wcp5g 0/1 ContainerCreating 0 66s {% endhighlight %}

Uninstall cluster

If you want to remove the cluster, you can use the terraform destroy command: {% highlight bash %} $ cd installer/upi/vsphere $ terraform destroy -auto-approve {% endhighlight %}

Additional information

Since your VMware administrator will ask you for sure about the required permissions for the installation, maybe this is a good list to start the discussion. I’m sure, not all of these permissions are needed for the installation, so if you have time, strip it down ;)

vSphere roles / permissions: {% highlight bash %} Datastore Allocate space Low level file operations

Folder Create folder Delete folder

Network Assign network

Resource Assign vApp to resource pool Assign virtual machine to resource pool Create resource pool Remove resource pool

vApp Clone View OVF environment vApp application configuration vApp instance configuration vApp resource configuration

Virtual machine Change Configuration Acquire disk lease Add existing disk Add new disk Add or remove device Advanced configuration Change CPU count Change Memory Change Settings Change Swapfile placement Change resource Configure Host USB device Configure Raw device Configure managedBy Display connection settings Extend virtual disk Modify device settings Query Fault Tolerance compatibility Query unowned files Reload from path Remove disk Rename Reset guest information Set annotation Toggle disk change tracking Toggle fork parent Upgrade virtual machine compatibility Edit Inventory Create from existing Create new Move Register Remove Unregister Guest operations Guest operation alias modification Guest operation alias query Guest operation modifications Guest operation program execution Guest operation queries Interaction Answer question Backup operation on virtual machine Configure CD media Configure floppy media Connect devices Console interaction Create screenshot Defragment all disks Drag and drop Guest operating system management by VIX API Inject USB HID scan codes Install VMware Tools Pause or Unpause Perform wipe or shrink operations Power off Power on Record session on virtual machine Replay session on virtual machine Reset Resume Fault Tolerance Suspend Suspend Fault Tolerance Test failover Test restart Secondary VM Turn off Fault Tolerance Turn on Fault Tolerance Provisioning Allow disk access Allow file access Allow read-only disk access Allow virtual machine download Allow virtual machine files upload Clone template Clone virtual machine Create template from virtual machine Customize guest Deploy template Mark as template Mark as virtual machine Modify customization specification Promote disks Read customization specifications

{% endhighlight %}
